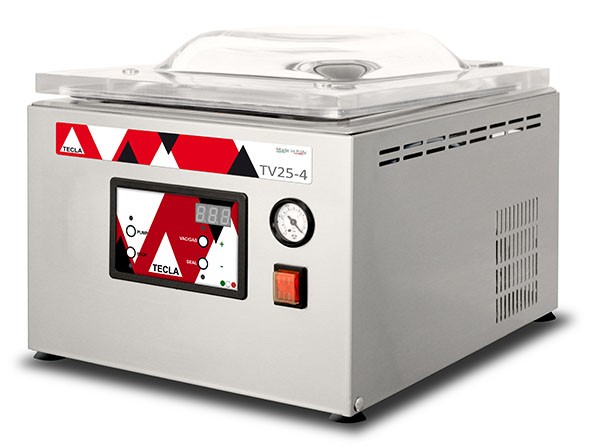

TV 25-4

Vacuum Chamber

The vacuum packaging TV 25-4 is built entirely in stainless steel AISI 304/SB.

The vacuum chamber has a rounded inside corners for ease of cleaning.

The operating cycle is automatically controlled by the electronic board, the sealing bar is positioned on pneumatic pistons.

The machine can handle up to 10 independent programs with digital control panel.

It does not require latch cover as it features an innovative system.


TV 25-4

Vacuum Chamber

Technical data
Digital controls
Body Work INOX AISI 304/SB
Vacuum pump 4 mc/h
Sealing bar 1x250 mm
External dimensions 357x475x335h mm
Sized vacuum chamber 270x352x150h mm
Weight 23,60 Kg
Power grid voltage 230V - 50 Hz
Cover thickness 24 mm
Max power absorbition 350 W
10 independent programs
